The 12/24-month inspection in the maintenance log hasn’t shown any changes for quite a long time. We confirm and measure individual components to refresh them.
Owner’s Common Trait: A vehicle that feels like it’s running normally with no particular issues at the moment.
Unexpected Blind Spots Uncovered: Internal fraying of throttle and clutch cables, dried-up grease on lever and pedal pivots, subtle notches (catching points) in stem bearings, and oxidized ground wires.
The Key to Inspection: Rather than just going through a checklist, we measure operating friction (resistance) and verify torque on all components at actual working levels. We apply preventive treatment at the early warning stage before “major troubles” develop!
It was around 0.7~0.8 Mpa. That’s a sufficient reading for cold conditions.
The spark on #3 isn’t quite right. I’ll keep that in mind. I went ahead and replaced the plugs too… they used to be 450 yen each, now they’re 600 yen each.
Sharpening up the brake caliper and disc
Cleaning the brake caliper and working it reveals the seal’s condition. It’s still good for continued use. It has aluminum pistons, which is excellent.
Single-piston smoothness is key. Fine deburring should make it even better.
The rear brake caliper is also in excellent condition.
The brake disc thickness and degreasing cleaning have reset it. After that, it’s just a matter of braking hard during the test ride.
Wheel bearing condition and model number
During maintenance, I research various model numbers and specifications. It makes ordering easier for the next maintenance.
The Z requires disassembling quite a bit to see everything, which is a bit tedious. The bearings are good for continued use.
I’ll also replace the hub damper at this time.
Even though it’s brand new, there’s a lot of play—is it because it’s a Kawasaki? Among the four manufacturers, it feels by far the loosest.
With so much play, the rear doesn’t sync well with throttle on/off, which feels really awkward. I made POM shims and added 6 pieces (6mm) this time. It eliminates unnecessary lag and smooths things out nicely.
Brake fluid is Golden Cruiser DOT4
The fluid color was nice and clean.
Lately I’ve been forcibly replacing banjo bolts with difficult air-bleeding layouts to ones with bleed screws.
When I remove them… ah, that’s the product from that shop that used to sell them. If this happened today, it would be a huge scandal, but it quietly disappeared into obscurity. Only the people doing the work notice, so it’s inevitable…
Checking each component individually

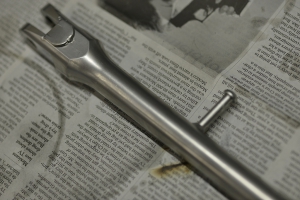

Checking the axle shaft
Cleaning and lubricating the speedometer cable
Maximum generated voltage and RPM
Checking the fuses. There are still plenty of other lubrication and inspection points, but I’ll stop here since there’s no end to it.
Surprisingly, spraying contact cleaner and wiping with a cloth cleans things right up. It’s something I’m reminded of daily—it really adds up! (*´ω｀*)
Level gauge stopper. Interesting product. Since it’s an external insert, could it come loose?
When I loosened the bolt, I noticed it was barely engaged. Please tighten it to at least 1D (screw diameter) or more. Looking at other parts as reference is helpful.
I took it for inspection this morning and went for a test ride when I got back. Vintage bikes really are great with thin tires.
I wonder why I put 2.75-18/4.00-18 on my own GS1000S… I’m a bit regretful. I prefer the rear around 3.50. Everyone has their preferences, but the original really is well-designed.
It felt like it could go anywhere (*´ω｀*) Really sharpened up!
Topic: Uncovering hidden blind spots and potential risks on motorcycles that seem to run “normally.” Details: Happy Thursday from the Decoboco tech bay! Today’s log focuses on our signature inspection program, “Deco-mainte.” Many riders assume their bikes are in top shape because they start and roll without obvious issues. However, deep inspections frequently reveal critical hidden oversights. Common blind spots include dried-up lever pivot grease, fraying clutch cables hidden inside housings, subtle steering stem bearing notches, and oxidized frame ground connections creating electrical resistance. Verdict: Real maintenance isn’t just fixing broken parts—it’s eliminating friction and risks before they turn into road breakdowns. A thorough checkup provides complete peace of mind!
