It’s like walking through a minefield—that kind of bike. It’s a classic bike thing, but I’m a bit nervous about removing things and they don’t go smoothly, which is unusual for me.
Given that nearly 50 years have passed, I suppose it’s unavoidable (；∀；) So I’m going ahead with the valve timing adjustment.
Z1-R Season 3 Engine Diagnosis
Current status:
WEB CAM #110 is installed.
However, it lacks the punch I expected, and there’s **”something off”** about the throttle response and idle.
Hypothesis: Could the **”valve timing”** be off due to cam chain stretch or misalignment during installation?

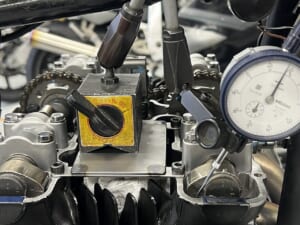

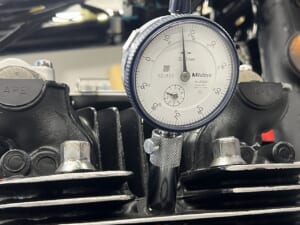

Work: Using a dial gauge and protractor, I’ll precisely measure the current valve timing → adjust to spec.
Decoboco’s other blog. “RURAL GARAGE“
A hidden room for non-motorcycle stuff. Handy everyday items, relocation, delicious food, life philosophyand more. ←click
When it comes to cams, it’s Yoshimura! So I have no idea about the specs. When stuck, I contact the expert in Gifu… and he quickly sent me the data (*´ω｀*) Thanks as always.
I see… Valve Timing Is Checked With Zero Valve Lash @ 0.050 Inches Of Valve Lift.
Web Cams and similar use “0.050 inch (about 1.27 mm) lift point” as the opening and closing reference “Zero Valve Lash (zero tappet clearance)” I see—it really shows that instructions and manuals are important for everything.
I often think I know something and move forward, then realize“Wait, that’s how it works?”So I need to be careful about that.
Anyway, something feels strange…
I didn’t know the cam chain could contact in a place like this… An alternate dimension? I’m proceeding with the work a bit nervously.
It looks like molybdenum was applied… strange feeling. Everything sticky came off—was it applied like that? It seems to be peeling more than a typical surface treatment… I cleaned the mounting surface too.
I thoroughly cleaned the contact areas. There was plenty of thread locker, so I tapped it.
The Z uses M6×3 with strength grade 9. Suzuki uses M7×2 with strength grade 12.9, and the tightness feels solid.
It’s unusually sharp. Since there were burrs, I removed them all (*´ω｀*)
Yoshimura Adjustable Lightweight Cam Sprocket 30T
The sprocket I removed didn’t have elongated holes. It was just snapped on as-is, so it was over 10 degrees retarded.
Thinking about it this way, Yoshimura cams are really wonderful.
I could make one myself, but setup takes time—buying is faster and more economical.
When buying, I’m not very familiar with the Z, so“Same tooth count? Same chain size?” I had to check various things.
Chain size: Both are DID 219T(J-series uses Hy-Vo chain, which is different) Tooth count: Both are 30T Mounting holes: Both are 3-hole(3-bolt fastening)
The point is they’re the same, so it’s reassuring that it works.
I prepared various things to minimize ambiguity and reduce damage risk. From past experience, I have a hunch… Though honestly, I probably should have just referred them to a Z specialist shop from the start?
So I set it right to spec and checked the valve pistons too. This should make it run much sharper.
I used Honda OEM head cover bolts (steel). Pretty understated and nice, right?
There’s a bit more to come.
Troubleshooting Z1-R: Checking Valve Timing on WEB CAM #110.
Issue: The engine performance felt “off” despite having high-performance WEB CAM #110 camshafts installed. It lacked the expected power and response. Diagnosis: I suspected the valve timing was incorrect. Work: Using a dial gauge and degree wheel, I measured the cam timing. As suspected, it was off-spec. Fix: Re-adjusted the cam sprockets to the correct timing. Now the engine should perform to its full potential.
