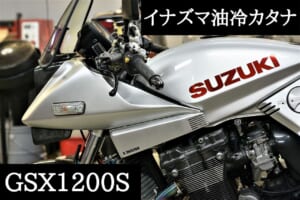

[Unicorn GSX1200S] Restoring Frame Rigidity. Engine Mount Maintenance for the Inazuma 1200-Based Oil-Cooled Katana

After relocating to Chiba, I’m grinning from ear to ear with so many things I want to do.
There’s no shortage of work, but life never gives you enough time…

I’ve entered that kind of life phase (*´ω｀*)
The deadline is flexible, but I’m determined to finish by March. *Probably.

So I’m starting with the appetizer to the oil-cooled maintenance.

Engine damper is perfect with a homemade tool

The oil-cooled 1200 (GSF1200/Inazuma 1200/Bandit 1200/GS1200SS) has awkward access to the front engine damper.
The standard procedure requires removing the muffler…

Suzuki’s exhaust pipe bolts are unfortunately fixed in a problematic way.
If they seize and snap, removal becomes a nightmare.
With this bent HEX wrench and half-moon wrench, you can remove them smoothly about 98% of the time *our estimate

The HEX wrench is wrapped with 3mm heat-shrink tubing to avoid scratching the frame.
The used axle shaft at the top is an extension for the HEX wrench.

When loosening, don’t flex the tool—apply power directly to the bolt for easy removal.
Depending on the bolt’s condition, “Did it break or did I break it?”
Flexing the tool often leads to problems.
The key is using solid tools and working methodically and efficiently.

The oil-cooled 1200 is covered in thread-locking compound! Be careful.

Removing these under your house as a DIY project is probably… extremely difficult.
It’s better not to touch them carelessly. Once you start, see it through at your own risk (*´ω｀*)

Engine mounts, given the era they were designed in, prioritize “safety”
over serviceability, “preventing detachment” is the priority.
Loosen and remove these carefully and methodically, or you’ll be in for a world of hurt.

The crankcase side is thoroughly cleaned with a Vikan brush and Makita drill.
This is a spot that often gets overlooked and accumulates rust and gravel.

Grease is applied to the engine damper before insertion.
It slides in smoothly with a gentle push.

Keeping this smooth reduces wear on the crankcase.
If the engine damper hasn’t been replaced in years, the case can wear and develop grooves, so be aware.

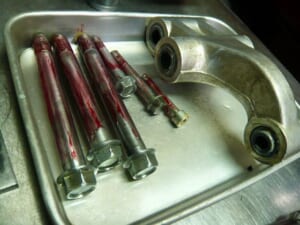

Replacing the engine mount bolts

You need to position the jack carefully.
Adjust it so the bolts come out easily by hand before removing them.

M14 and M10 bolts have excessive thread-locking compound.
Don’t use an impact wrench—
always use a 1/2″ or larger breaker bar and loosen slowly.

This hole also gets overlooked and never gets cleaned.
Cleaning it won’t improve performance at all…
It’s more about peace of mind—mind over matter.

I avoid Suzuki OEM bolts whenever possible.
When I can’t find alternatives, I use Honda bolts instead.

Honda bolts are generally “well-finished and reasonably priced.”
When you compare prices, most people are surprised…

Replacing the shift oil seal

Sometimes even this tool struggles… but 80% of the time it comes out smoothly.
Cleaning, lubrication, and heat—that’s all there is. No shortcuts! (*´ω｀*)

This oil seal goes in by hand.
You don’t always need to tap it in.
With most oil seals, if you push firmly by hand first,
you’d be surprised how many actually go in without tapping.

The shift arm is at 90 degrees. Don’t twist it.

The shift rod bends and breaks easily.
This spherical ball joint is universal, so it often gets abused.

Keep it at reasonable angles
and let it transmit the stroke smoothly—that alone improves shift feel.

Later… if you see lots of exposed threads on the shift rod, be careful.
If there’s no more adjustment available, rebuild the rod to hide the threads—it’s less prone to breaking.

Commercial step kits are designed to work for everyone, so they’re very flexible.
By customizing them for yourself, you can unlock 100% of their potential.

More to come
