Idling Stabilizes Perfectly! Retrofitting a Zephyr 400 CVK30 Carburetor onto a GPZ550 (ZX550) and Tuning It
My kitten had a chaotic April… I was exhausted with things outside of work (；∀；) Anyway, it felt like a proper Golden Week, and I got most of my homework done. Since parts haven’t arrived, I’ve been organizing the shop and working on things I want to do with my own bike.
Finally! I retrofitted a Zephyr 400 CVK30 onto my GPZ550.
Today’s Custom & Maintenance Log
Vehicle:Kawasaki GPZ550 (ZX550)
Background: The original TK carburetor worked perfectly fine, but I wanted to see what would happen if I upgraded to a CVK.
Solution (Work Details):

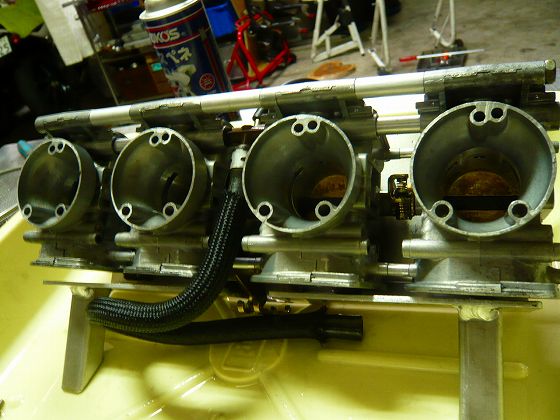

Retrofitting to a highly reliable **”Zephyr 400 OEM Keihin CVK30″** carburetor, which still has easily available overhaul parts.
Result: The idle is now perfectly stable, and it revs smoothly from low to high with a modern feel!
My other blog, Decoboco. “RURAL GARAGE“
A hidden room for non-motorcycle topics. I share everyday convenience items, relocation, delicious food, life philosophyand more. ←click
So they’re basically compatible. The manufacturer is a master at fine-tuning with the intake manifold. Once you understand this, the range of possible retrofits expands dramatically.
Carburetor Pitch Differences. Positions 2-3 are mostly compatible, but 1-2 and 3-4 differ slightly.
Consider the carburetor pitch relative to the intake manifold you’re using.
The air cleaner side is also mostly compatible. *The TK30 has some protrusions around 51φ, but I didn’t worry much about it. *The air cleaner box duct side remains stock GPZ550.
This retrofit is“Complete with the Zephyr 400 intake manifold”is what I theorized.
The intake manifold on the left is slightly offset. This is how it’s matched to the carburetor.
The smaller the displacement, the harder it is to fit four carbs, so they use rubber to absorb the difference. The manufacturer is truly a master craftsman (*´ω｀*)
I really love this kind of attention to detail.
The last four digits of the part number and L/R marking. Making it understandable to anyone is truly wonderful. There are era-related factors, but when information like this is missing and the stance is “you should understand just by looking,”it tends to create problems.
The mounting pitch is compatible. Should I measure? I didn’t measure this intake manifold since I won’t be using it again.
Anyway, thanks to this intake manifold, the concerns I had about “carburetor pitch issues” and “are the intake manifold pitches compatible?” were completely resolved.

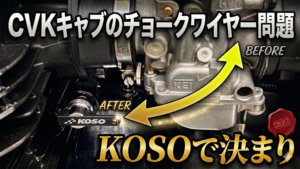

KOSO’s Choke Extension Kit is Absolutely Genius
I’m really glad I found this. It’s incredibly convenient! It comes in 1000mm and 1500mm options. It’s for people who can do a bit of fabrication.
This item would also be great for people who’ve retrofitted a BST carburetor. It could also be used for seat opening and other applications.
I mounted it like this on top of the starter motor cover. By the way, I raised it about 10mm with a stainless steel spacer.
With parts like this, the clean appearance is important, but “carburetor and maintenance convenience”is what I prioritize most. I’ve already removed and reinstalled the carburetor about 5 times, and I have to say, clear files are amazing.
Kawasaki’s characteristic throttle cable that just sits in place. Some might say I should just cut and fabricate it properly, but… It’s a hassle. I have no attachment to perfection; I aim for simplicity and ease, with an emphasis on information that can be widely applied.
I took the carburetor-side bracket from the old throttle cable scrap. I’ll use this.
Oh, the bracket is crimped, so you need to remove it with a lathe or similar tool. In a pinch, a belt sander might work too.
I set it up like this. You might think I could use an adjuster with a nut, but… The bottom of the CVK30 throttle mounting bracket isn’t flat, so I can’t lock it with a nut. *Requires disassembly and modification
So I’m continuing with the press-fit method.
What I need to do is ・Replace the intake manifold with the Zephyr 400 version ・Shorten and modify the throttle cable bracket ・Install the choke cable
No lift available, so ground-level maintenance
Once you get used to a lift, ground-level work feels tedious. There’s a downside to getting comfortable with good conditions (；∀；)

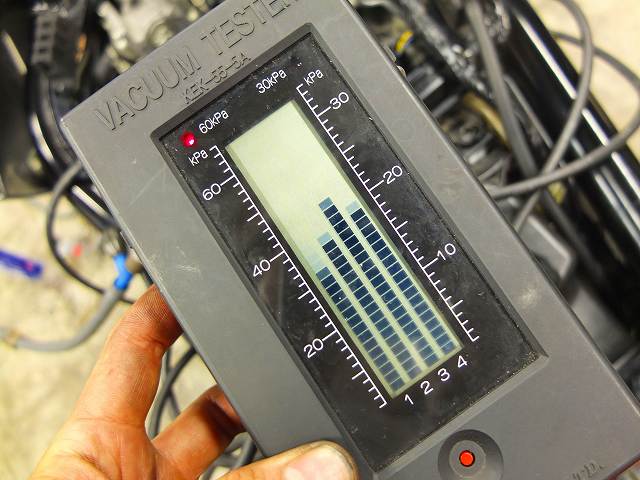

Install it and synchronize the carbs, and we’re done.
Installing it as if nothing happened. I bought this from Upgarage, but… it was pretty rough. With wet blasting and gun coating, it looks sharp and tight.
Even with the fairings installed, nothing interferes. So it works as-is.
As-is, the plugs burn too rich.
The CVK can use FCR jets. SJ is compatible MJ uses the same main air jet
I went with a larger size from what I had on hand, but it just made things too rich, so I went back to the original for now.
So what’s it really like? My impressions with it in its current state are… The low-end response is dramatically better. It feels like the low-speed range is really solid. I didn’t notice much change from mid to high RPM.
Since it’s using the stock needle, the straight diameter is fairly thick and the taper is gentle. I have no intention of swapping needles and fiddling endlessly.
However, the Zephyr 550 has a favorite? Dynojet setup. I want to try putting the Zephyr 550 CVK on the GPZ550 next to see what happens. This is where using the same parts becomes really helpful. Plus, jets are easier to source for the CVK, and consumables like O-rings and gaskets are more affordable.
You might want to think of it as a compatible part and retrofit it.
Curing Carburetor Woes: Swapping a Zephyr 400 Keihin CVK30 onto a Kawasaki GPZ550!
Vehicle: Kawasaki GPZ550 (ZX550). Work: Retrofitting and tuning a Keihin CVK30 carburetor from a Kawasaki Zephyr 400. Details: A common and frustrating issue with 80s Kawasaki middleweights is the rapid degradation of the original carburetors, compounded by a lack of replacement parts. To solve this, we adapted a Keihin CVK30 from a Zephyr 400. The CVK30 is reliable, and parts are abundant. While the physical fitment requires some minor adaptations, the real challenge is the jetting. Since we are putting a 400cc carb on a 550cc engine, we carefully re-jetted the pilot and main jets to achieve the perfect air/fuel ratio. Verdict: The result is astonishing! The unstable idle is completely gone, replaced by a smooth, modern, and reliable rev-range. This is a game-changing modification for classic bike reliability.
